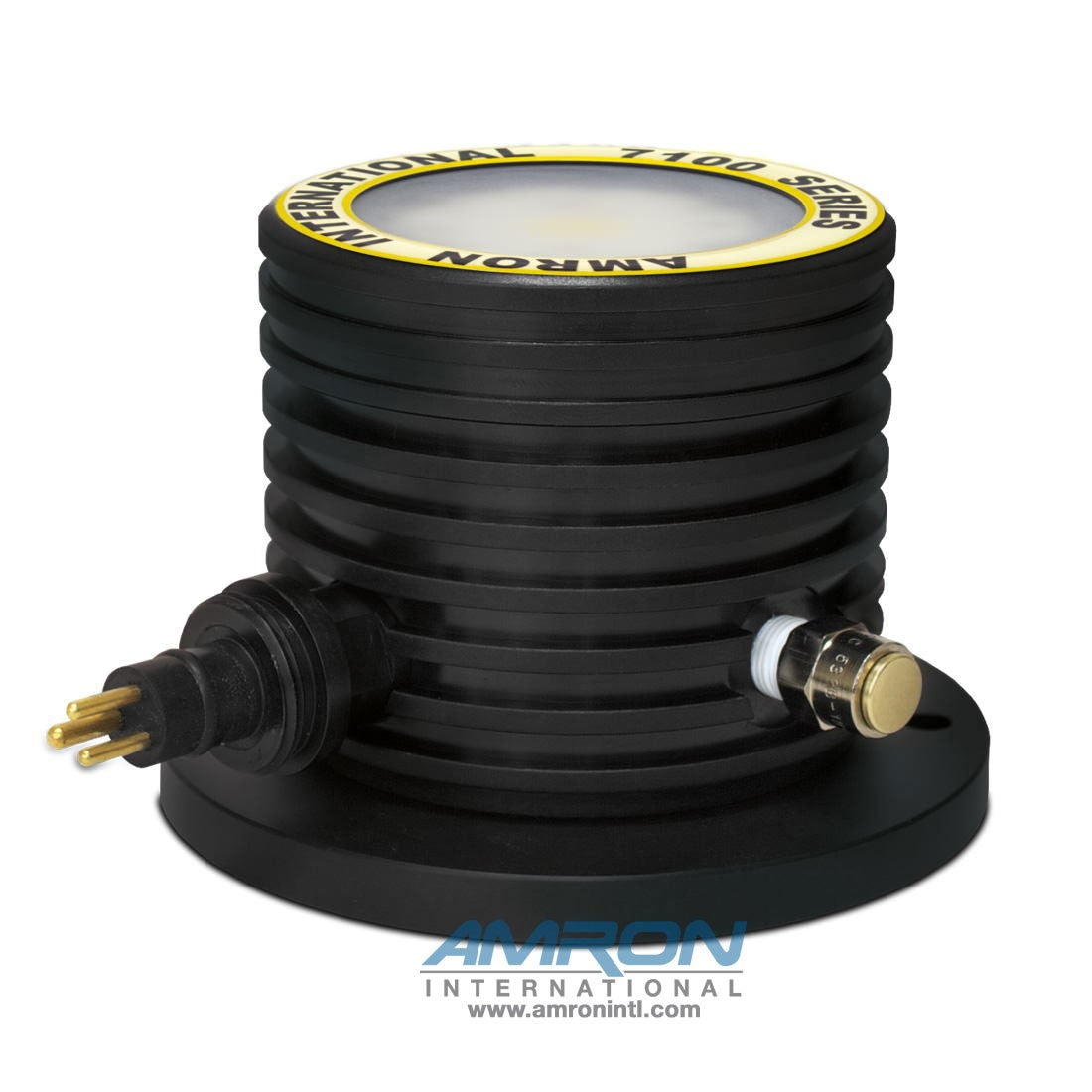

LED Hyperbaric Chamber Light

LED Hyperbaric Chamber Light is a chamber-mounted light for illumination of pressurised chambers. It is intended for hyperbaric chamber use. Power or supply requirement: Low-voltage DC.

• 4.2 Watt LED bulb equivalent to 30 Watt Halogen bulb
• Adjustable integrated mounting plate
• Low heat with high-performance heat sink
• 3-pin Male Marsh Marine Connection
• Optional magnetic base available
• Optional red and blue lens filters

Specifications

• Lamp type: White 4.2 Watt LED (equivalent to 30 Watt Halogen bulb)

Electrical Specifications

• Operating Voltage Range: 10-28 VDC
• Input Power: 5 Watts (maximum)
• Beam Angle: 30°
• Light Level: 300 lumens

Mechanical Specifications

• Housing: 6061 Aluminum
• Finish: Black Hard Anodized, MIL-A-8625, type III class 2
• Pressure Rating: 1000 fsw (300 msw)

Mating Connectors

• 3-pin Marsh Marine: RMG-3-FS (not included)
• Locking Sleeve: Delrin - Marsh Marine: G-FLS-D (not included)
• Locking Sleeve: Stainless Steel - Marsh Marine: G-FLS-S (not included)

Dimensions

• Height: 3.15 inches (80 mm)
• Body Diameter: 3.3 inches (84 mm)
• Mounting Plate: 4.5 inches (114 mm)
• Weight: 1.50 lbs (0.68 kg)
